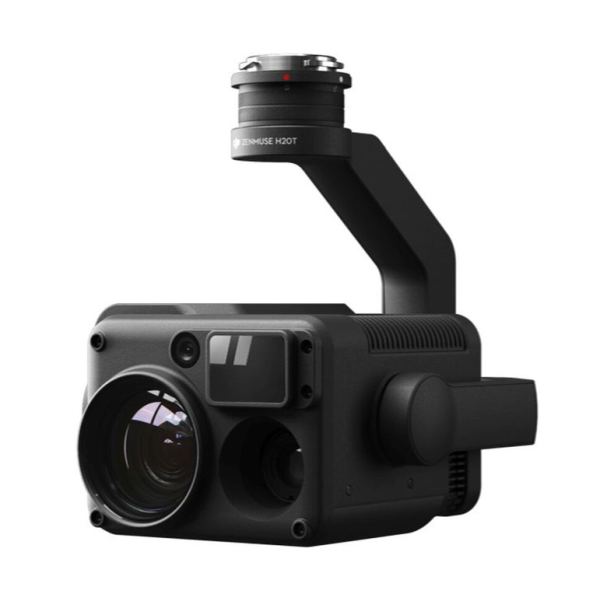

Zenmuse H20T
Zenmuse H20T
CHF10,950.00
Tax included
ENVIRONMENTAL
| Working Temperature (°C) | From -20 to 50 |
|---|---|
| Weather Proof IP Rating | 44 |
DRONE
| Usage | Precise aerial inspection from long distances, Public Safety and Industrial inspections, Thermal and RGB imaging |
|---|
PAYLOAD
| Camera stabilisation | 3-axis (pitch, roll, yaw) |
|---|---|
| Angular vibration range in ° | 0.01 |
| Controllable range | Pitch: -120° to +30° / Yaw: ±320° |
| Mechanical range | Pitch: -132.5° to +42.5° Yaw: ±330° Roll: -90° to +60° |
CAMERA
| Video Frame Rate | 1920x1080@30fps, 3840x2160@30fps |
|---|---|
| Video Resolution | 12MP, 20MP |
| Video Compression | H.264 |
| Sensor | 1/1.7" CMOS 12MP, 1/2.3" CMOS 12MP, Uncooled VOx microbolometer (Sensitivity <50 mK / Pixel pitch 12 um / Spectral band 8-14 um) |
| Lens | DFOV: 40.6° Focal length: 13.5 mm (equivalent: 58 mm) Aperture: f/1.0 Focus: 5 m to ∞, DFOV: 66.6°-4° Focal length: 6.83-119.94 mm (equivalent: 31.7-556.2 mm) Aperture: f/2.8-f/11 (normal), f/1.6-f/11 (night scene) Focus: 1 m to ∞ (wide), 8 m to ∞ (telephoto), DFOV: 82.9° Focal length: 4.5 mm (equivalent: 24 mm) Aperture: f/2.8 Focus: 1 m to ∞ |
| ISO | from 100 to 25600 (Video), from 100 to 25600 (picture) |
| Image format | JPEG, R-JPEG |
| Video format | MP4 |
| Image max. resolution | 1920 x 1080 (Video), 3840 x 2160, 4056 x 3040 (Picture), 5184 x 3888 (Picture), 640 x 512 Thermal |
| Exposure modes | Auto, Manual |
| Operation modes | Capture / Record / Playback |
| Still photography modes | Single shot / Burst shooting (3/5/7 frames) / Interval |
| Digital Zoom | 23x (Max. 200x) |
TRANSMISSION
| Video transmission | OcuSync Entreprise |
|---|
THERMAL CAMERA
| Thermal resolution | 640 x 512 |
|---|---|
| Other features |
Thermal:
- High gain: -40 ºC to 150 ºC
- Low gain: -40 ºC to 550 ºC
|
| Sensor | Uncooled VOx Microbolometer |
| Focal | DFOV: 40.6° Focal length: 13.5 mm (equivalent: 58 mm) Aperture: f/1.0 Focus: 5 m to ∞ |
| Digital Zoom | 1x, 2x, 4x, 8x |
| Pixel Pitch | 12 μm |
| Spectral Band | 8-14 μm |
| Photo format | R-JPEG |
| Video format | MP4 |
| Metering method | Area mesurement, Spot Meter |
| Sensitivity NETD | ≤50 mK @ f/1.0 |
| Temperature alert | Yes |
