ENVIRONMENTAL
| Working Temperature (°C) |
From -20 to 50 |
|---|
| Weather Proof IP Rating |
4X |
|---|
DRONE
| Usage |
HD photography, Mapping and Surveying – mechanical shutter, Precise aerial inspection from long distances |
|---|
PAYLOAD
| Camera stabilisation |
3-axis (pitch, roll, yaw) |
|---|
| Angular vibration range in ° |
0.01 |
|---|
| Controllable range |
Pitch: -120° to +30° / Yaw: ±320° |
|---|
| Mechanical range |
Pitch: -132.5° to +42.5° Yaw: ±330° Roll: -90° to +60° |
|---|
CAMERA
| Video Frame Rate |
3840×2160@60fps |
|---|
| Minimum Shutter time |
Mechanical Shutter Speed: 1/2000-1/8 s Electronic Shutter Speed: 1/8000-8 s |
|---|
| Sensor |
Sensor size (Still): 35.9×24 mm (Full frame) Sensor size (Max video recording area): 34×19 mm Effective Pixels: 45MP Pixel size: 4.4 μm |
|---|
| Lens |
DJI DL 35mm F2.8 LS ASPH (with lens hood and balancing ring/filter), FOV 63.5° |
|---|
| Lens (mm) |
35mm |
|---|
| ISO |
from 100 to 25600 (picture), from 100 to 3200 (video) |
|---|
| Image format |
Photo / GNSS Raw Observation Data/ Image Log File |
|---|
| Video format |
MP4 |
|---|
| Image max. resolution |
3:2 (8192×5460) |
|---|
| Operation modes |
Capture / Record / Playback |
|---|
| Aperture Range |
f/2.8-f/16 |
|---|
THERMAL CAMERA
SPECIFICATIONS
| Product type |
Payloads |
|---|
| Warranty |
2 Years |
|---|
FEATURES
| Contents of the package |

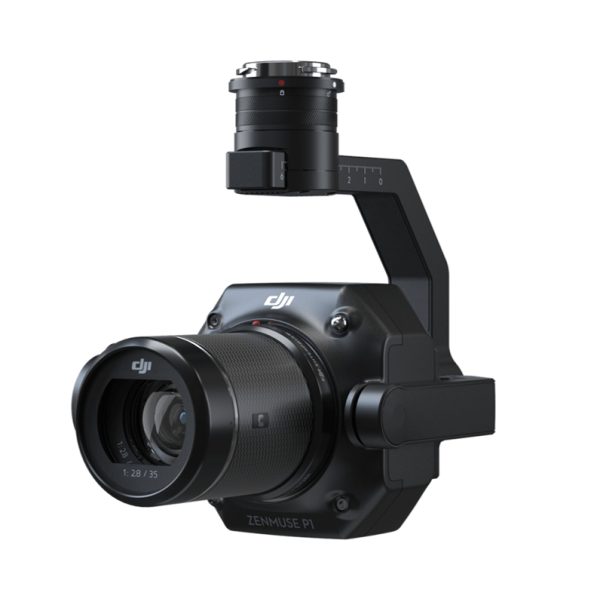

- DJI Zenmuse P1
- DJI 35mm Lens
- DJI CARE Enterprise Basic
|
|---|
